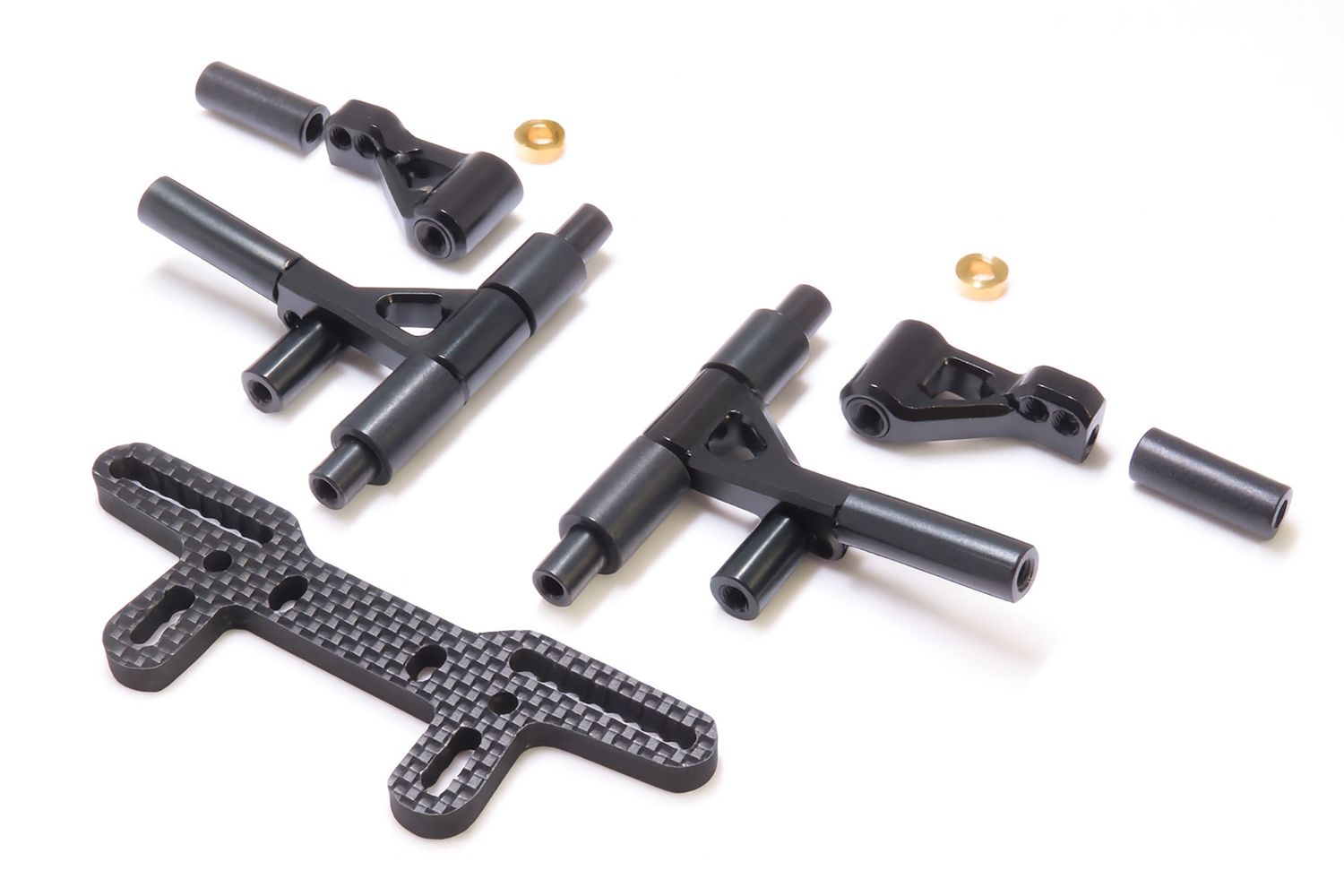

TT-02 Front Suspension Conversion Set

TT -02 Front Suspension Conversion Set to Maximize the Potential of the TT

-02 This front suspension is designed specifically for RWD drifting, maximizing the potential of the TT-02. By combining high-precision machined aluminum arms and 4mm thick carbon shock towers, this high-performance conversion set achieves excellent rigidity and precision, resulting in highly reproducible driving.

Main Features
■ High-rigidity 4mm thick carbon shock tower
○ Two-stage height adjustment possible
○ Upper arm mounting position can be adjusted in three stages of height
■ High-precision machined aluminum upper arm
○ Cantilever support structure with 5mm diameter steel shaft
○ Caster angle can be adjusted by changing the thickness of the spacer
■ High-precision machined aluminum lower arm
○ High-rigidity support with 5mm diameter / 50mm long steel shaft
○ Damper mounting position can be selected from two locations, inner and outer
○ Clearance is ensured to prevent tire-damper interference during full steering
○ Supports short dampers by reversing the upper and lower arms
