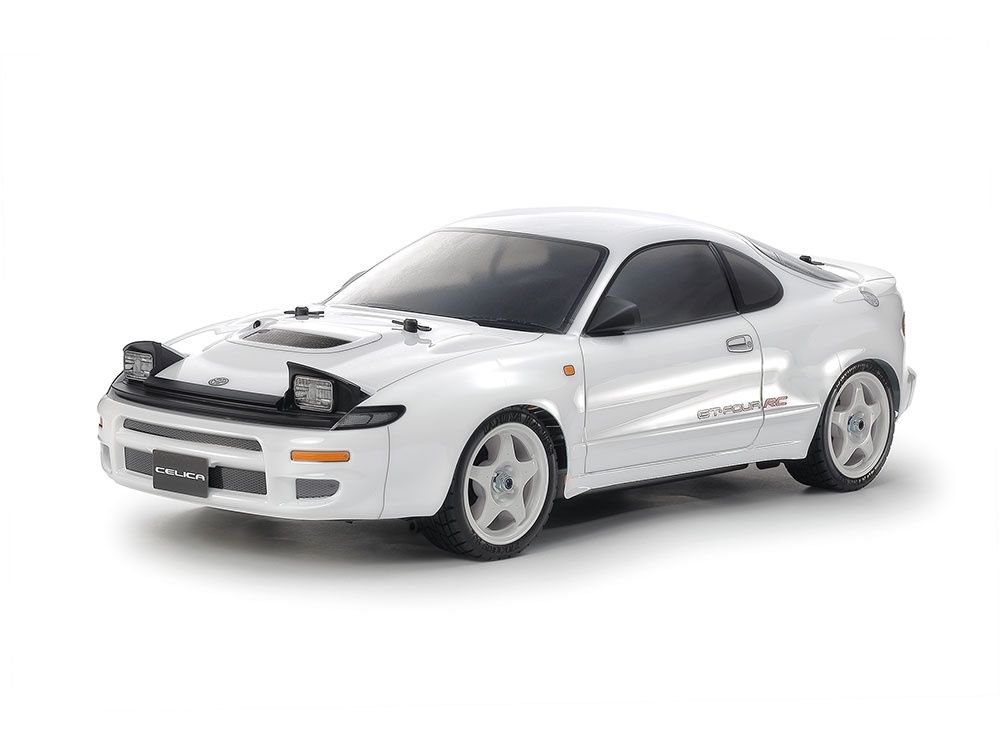

Tamiya - 1/10 R/C TOYOTA CELICA GT-FOUR RC (ST185) (TT-02)

The Toyota Celica GT-Four RC was developed as a homologation car to take part in global rally races, and in 1991, 5,000 units were sold around the world. With its curved, powerful body, this car employed a 2-liter turbo engine with metal turbines and water-based intercooler system, which was capable of 235ps. The 4WD system utilized a center viscous coupling and a Torsen differential at the rear for superior controllability and traction. In 1993 global rally races, the Celica GT-Four (ST185) brought both Manufacturer’s and Driver’s Championships to Toyota for the first time. This assembly kit recreates the RC (Rally Competition) version of the car, with a lightweight and durable polycarbonate body based upon the shaft-driven 4WD TT-02 chassis.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. 5-spoke wheels use semi-pneumatic racing radial tires.

Specifications
★Length: 450mm, width: 187mm, height: 136mm ★Wheelbase: 257mm ★Tire width/diameter: 27/67mm (front & rear) ★Bathtub-type frame ★Shaft-driven 4WD ★Front/rear 4-bevel plastic differentials ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Front/rear friction dampers ★Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) ★Type 540 motor ★Electronic Speed Controller (ESC) is sold separately.

Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
