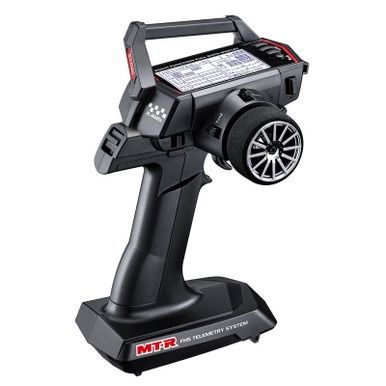

SANWA 101A32774A MT-R + RX-493I

• WHITE LED BACK LIGHT●LARGE FULL-DOT LCD MONITOR (128x64dot)
• ST TH TENSION ADJUSTMENT●ADJUSTABLE TRIGGER
• TELEMETRY FUNCTION●DUAL RATE●SERVO SPEED●SERVO REVERSE
• TRIM/SUB TRIM●CURVE (EXPONENTIAL / ADJUSTABLE-RATE CONTROL)
• FAIL SAFE (RADIO WAVES / BATTERY) ●EPA●OFFSET●BIND●BASE
• FUNCTION●TH TYPE (70:30/50:50) ●ANTI-LOCK BRAKE●MODEL NAME (10 LETTERS)
• MODEL MEMORY (20 MODELS) ●MODEL(SELECT/CLEAR/COPY)
• TIMER (LAP / INTERVAL / DOWN) ●LOGGER●ALERT SETTING●TELEMETRY SETTING
• KEY ASSIGN (SW / TRIM) ●BUZZER (SCALE / VOLUME CHANGEABLE)
• TRANSMITTER BATTERY ALARM●LCD CONTRAST●VOLUME ADJUSTMENT
• SETUP WIZARD●RF MODE SETTING(FH5) ●RESPONSE MODE (NOR/SHR/SSR/SUR)
• DIRECT MODEL SELECT●AUX1(SELECT THE OPERATION TYPE OF 3CH)
• AUX2(SELECT THE OPERATION TYPE OF 4CH)
• AUX TYPE SETTING

CODE AUX (COMPATIBLE WITH SUPER VORTEX Gen2 and Gen2 PRO & PGS Servo

Series & SGS-02 MENU)

STEP AUX (STEP 1 to 100)

POINT AUX (2 to 6 POINT)

4WS MIXING (FRONT/REAR/NORMAL/REVERSE

MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)

*DRIVE RATE IS VARIABLE.

AUX MIXING (ST MIXING, TH MIXING)

• 4 CELL DRY BATTERY (AA x4)
• COMPATIBLE RECEIVER; RX-491, 492, 492i, 493, 493i

Cautions & supplemental explanation

[SSL (SANWA SYNCHRONIZES LINK) SYSTEM]

SANWA SSL SYSTEM

• When used with compatible RX-491, 492, 492i, 493, 493i, Super Vortex Gen2 series, SGS-02, and PGS servo series, the setting of ESC, Gyro, and Servos etc. by Transmitter is available through SSL functions while driving.
• Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions is available without interruption of Intervals and the change of machine conditions.

[RESPONSE OF TELEMETRY SYSTEM]

• It is often said that telemetry system reduces response speed. However, SANWA Original

Data Processing and Algorithm Design makes Telemetry possible without response speed reduction

Our Excellent Telemetry System has no response speed reduction.

• With our telemetry system, the precious race data will help the next race setting and driving.

[RESPONSE MODE]

• Please do not use Analog Servo for SHR mode, SSR mode, or SUR mode.

If analogy servo is used for SHR mode, SSR mode, or SUR mode, the servo will be broken and will not work. Digital servo (PGS series, SRG series, Digital ERG series, SDX series) can be used both for NOR mode and SHR mode.

• SSR mode can be used only by SRG servo series and PGS servo series.
• In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR do not work.

Please use NOR mode for the above ESC.

• SV-08, HV-10, HV-12, F2500 can work by NOR/SHR MODE.
• SUR mode can be used only by Super Vortex Gen2, Gen2 PRO, and PGS servo series.
