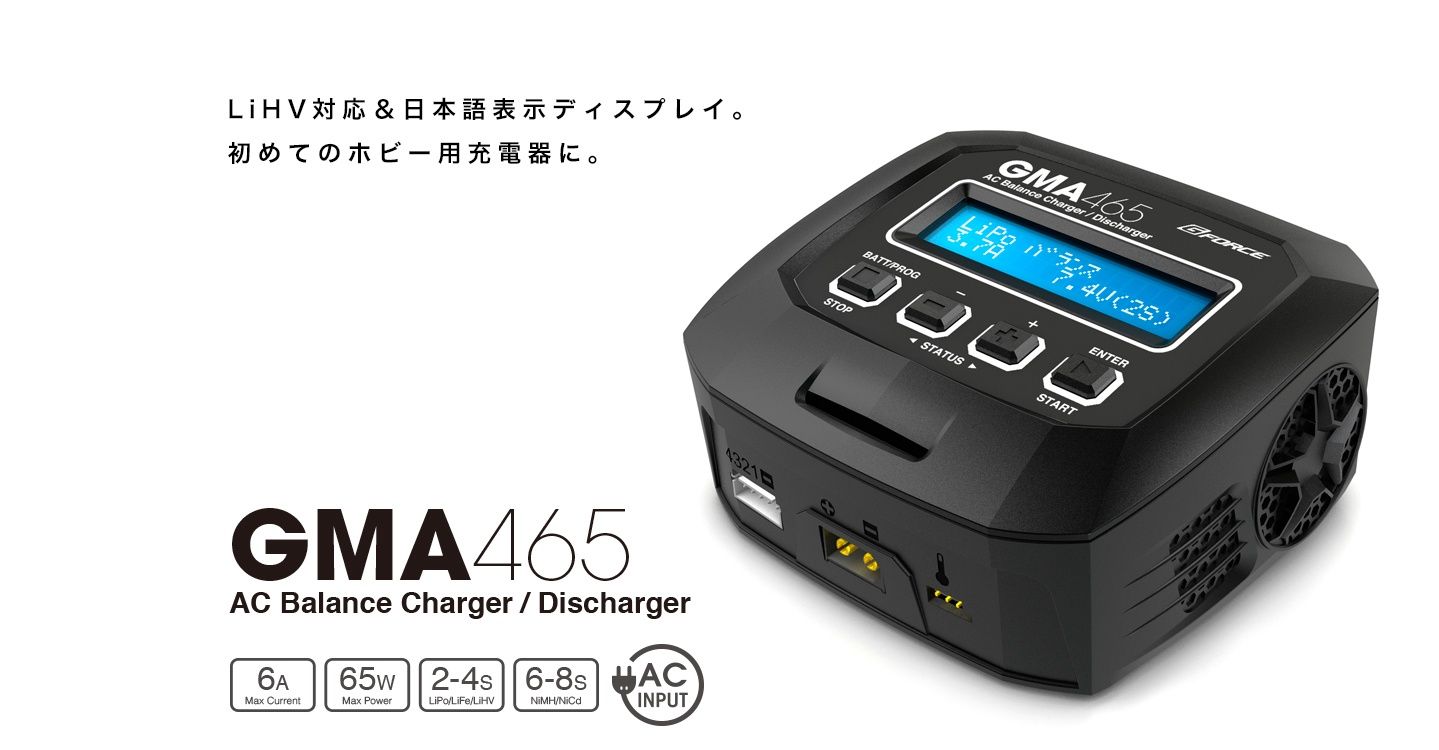

GForce GMA465 AC Charger
In stock: 3 available
Product Details
Brand: G-Force
We can handle both Li and Ni batteries!
Compatible with almost all types of hobby batteries!
Even if you have multiple types of batteries, you can charge and discharge almost all of them with just this one device! The GMA465 has many functions and performance that you would not imagine from its small body.
High functionality packed into a compact,
palm-sized advanced charger!
The AC adapter is built into the compact 11 x 11 cm case. No external adapter is required, allowing for a neat pit arrangement. The high power of up to 65W powerfully charges multi-cell and large-capacity batteries.
A connection port with enhanced safety. The use of XT60 prevents reverse connection.
The main connection ports are located on the front, allowing you to immediately see the connection status of the terminals. The main battery connection uses an XT60 connector. This improves ease of use and effectively prevents accidental reverse connection.
A responsive cooling fan that ensures stable operation .
The cooling fan is built-in to expel heat generated inside the main unit and support stable operation. The operation control is temperature-sensitive so that the fan operates only when necessary. It cools efficiently while minimizing unnecessary operation and noise.
Even more precise. Detects voltage down to three decimal places.
It uses a high-precision voltmeter that realizes advanced voltage management. It detects and displays voltage to three decimal places, allowing you to grasp the condition more accurately than ever before, and is also useful for selecting batteries for racing.
Product Features
LiPo and NiMH! Charge your RC batteries with this one device!
- Compatible with almost all RC and hobby batteries. The ultimate AC charger!
- Maximum 6A (65W) power in a palm-sized, compact body!
- Equipped with a built-in balancer, it charges lithium batteries safely and reliably!
- Equipped with many safety features such as reverse polarity protection circuit and temperature cut!
Contents
- GMA465 AC Charger
- AC Input Cable
- Tamiya Type Connector
- Japanese instruction manual
Specification
| Input voltage | AC100-240V | Balancing Current | 300mA/cell (maximum) |
|---|---|---|---|
| Operation section | 4 Buttons | Safety Timer | 1-120 minutes,OFF |
| LCD display | 2 lines x 16 characters Blue backlight | Compatible Battery | NiMH/NiCD 6-8Cells LiPo/LiFe/LiHV/LiIon 2-4S PB 3-6Cells |
| Product size | 118×115×45(mm) | ||
| weight | 315g | Charging Current | 0.1-6.0A (Max. 65W) |
| Delta Peak Setting Range | NiMH/NiCD 3-15mV/cell | Discharge Current | 0.1-2.0A(10W) |
| Cutting temperature setting range | 20-80℃ | Memory function | Up to 10 memories |
Battery parameters
| LiPo | LiIon | Life | LiHV | NiCD | NiMH | PB | |
|---|---|---|---|---|---|---|---|
| Rated voltage | 3.7V/cell | 3.6V/cell | 3.3V/cell | 3.7V/cell | 1.2V/cell | 1.2V/cell | 2.0V/cell |
| Charge completion voltage | 4.2V/cell | 4.1V/cell | 3.6V/cell | 4.35V/cell | 1.5V/cell | 1.5V/cell | 2.46V/cell |
| Storage Voltage | 3.8V/cell | 3.7V/cell | 3.3V/cell | 3.85V/cell | n/a | n/a | n/a |
| Recommended charging current | ≦1C | ≦1C | ≦4C | ≦1C | 1C-2C | 1C-2C | ≦0.4C |
| Discharge cutoff voltage | 3.0-3.3V/cell | 2.9-3.2V/cell | 2.6-2.9V/cell | 3.1-3.4V/cell | 0.1-1.1V/cell | 0.1-1.1V/cell | 1.8V/cell |
