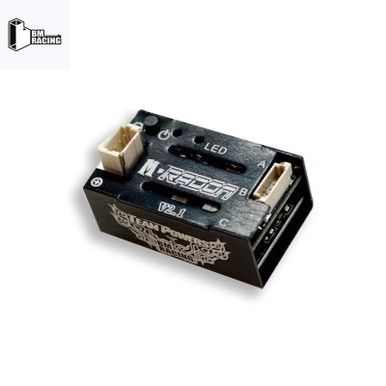

Team Powers M-Radon V2.1 Brushless Speed Control For Drift

Upgraded features from M-Radon V2.0

. Extra 2 item functions(Limit Power and Limit Power Range) added in software to improve the pick up linearity for mini drift car

or touring car

. Some hardware component upgraded for better stability and relability

. Crossover with” BMRC racing” brand with most mini car kit are combo with m-radon v2.1 speed control

Specification:

. Battery Input Voltage: 2S lipo

. BEC: 6V/1.5A

. 1/27 motor Limit: 10000kv or below

. Max Ampere draw: ~20A per phase

. Size: ~22.5×13.5x9mm(not include the plug)

. Weight: ~4.5g(without any wire installed)

MBX V2 Brushless Motor

Specification:

– Sensor type

– Motor Dimension (Diameter x Length): 15mm x 25.1mm (size is ~15% smaller than the MBX V1 motor)

– Shaft Diameter: 2mm

– Weight: ~14~15g (vary in different KV motor)

– Available KV: 3500KV, 5000KV, 7000KV

– Recommended RC Model Car: 1/27 or 1/24 miniz car
