Tamiya - 1/10 SCALE R/C 4WD OFF-ROAD CAR TOYOTA LAND CRUISER 300 (CC-02 CHASSIS)
Sold out
Product Details
Brand: Tamiya
Super SUV

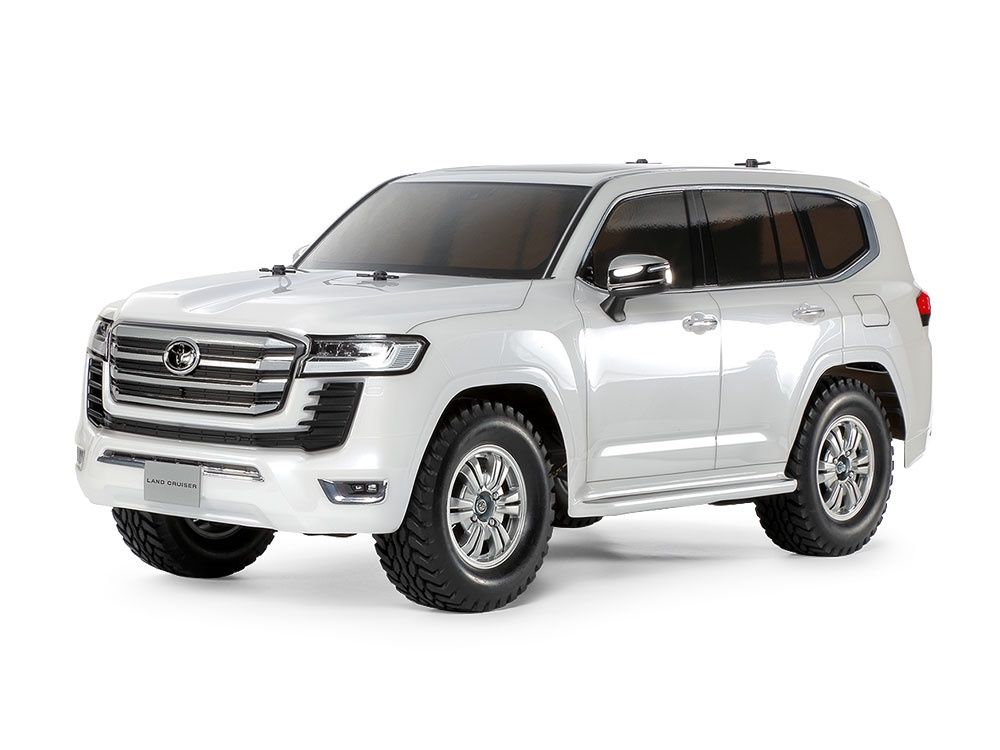

Since the first generation model release in 1951, the Toyota Land Cruiser has been one of the most famous 4WD vehicles in the world. This R/C model assembly kit recreates the Land Cruiser 300 series announced in 2021. The polycarbonate body realistically depicts the eye-catching, dignified form with separate parts to capture the distinctive large front grille's horizontal fins and metal-plated sections. Light case and door mirror components are metal-plated, and door handles and shark fin antenna on roof are rendered by separate parts for more realism. Silver color 12-spoke wheels are paired with block pattern tires.
CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with silver color twelve-spoke wheels and grippy block pattern tires.
Specifications
★Length: 472mm, width: 200mm, height: 192mm ★Wheelbase: 267mm ★Tread: 160mm (front), 163mm (rear) ★Tire width/diameter: 33/90mm (front & rear) ★Ladder frame ★Longitudinal motor, shaft-driven 4WD ★3-bevel differential gears ★4-link rigid suspension (front & rear) & CVA oil dampers ★Gear ratio = 17.33:1 (using kit-standard 16T pinion) ★Type 540 motor ★Electronic Speed Controller (ESC) is sold separately.
Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
Since the first generation model release in 1951, the Toyota Land Cruiser has been one of the most famous 4WD vehicles in the world. This R/C model assembly kit recreates the Land Cruiser 300 series announced in 2021. The polycarbonate body realistically depicts the eye-catching, dignified form with separate parts to capture the distinctive large front grille's horizontal fins and metal-plated sections. Light case and door mirror components are metal-plated, and door handles and shark fin antenna on roof are rendered by separate parts for more realism. Silver color 12-spoke wheels are paired with block pattern tires.
CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with silver color twelve-spoke wheels and grippy block pattern tires.
Specifications
★Length: 472mm, width: 200mm, height: 192mm ★Wheelbase: 267mm ★Tread: 160mm (front), 163mm (rear) ★Tire width/diameter: 33/90mm (front & rear) ★Ladder frame ★Longitudinal motor, shaft-driven 4WD ★3-bevel differential gears ★4-link rigid suspension (front & rear) & CVA oil dampers ★Gear ratio = 17.33:1 (using kit-standard 16T pinion) ★Type 540 motor ★Electronic Speed Controller (ESC) is sold separately.
Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
-
★The majestic form of the car is captured neatly by a polycarbonate body. -
★The model features a metal-plated depiction of the radiator grille, and other separate parts for the bumper grille. -
★Side mirrors are accurately recreated using separately molded parts. -
★Take a closer look at the stylish shark fin antenna, also a separately molded component.
-
★Stickers recreate taillights and the toyota emblem. The body is compatible with separately sold LEDs. -
★Both front and rear ends of the CC-02 chassis utilize 4-link rigid setups with shock absorption provided by CVA oil dampers. -
★The motor is mounted in the chassis front-middle; power goes via gearbox and propeller shafts to front and rear axles. -
★Up to 20 different gear ratios can be achieved with reassembly of the gearbox and use of separately sold pinion gears.
-
★Reinforced plastic axle housings each contain a differential, which can be locked with reassembly. -
★Silver color 12-spoke wheels are paired with block pattern tires.
