SkyRC T200 Dual Balance Charger
Sold out
Product Details
Brand: SkyRC

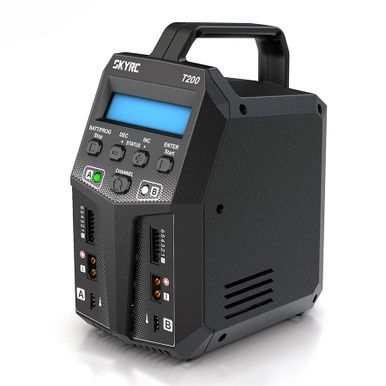

SkyRC T200 Dual Balance Charger
Feature:
- T200 comes ready to charge in the most compact design yet while taking up minimal space in the pit area. Only taking up about as much bench space as a pair of battery packs, the charger delivers dedicated 100W integrated power per each of the two complete charging circuits. Inside the case, there’s enough transformer power to fill two batteries simultaneously at up to 12 amps each, that you can pump life into everything from a receiver pack to a 6S LiPo or 15S NiMH or NiCD. All the programmability you expect of a modern higher-level charger is built in!
- With each charging channel programmed and operating independently, T200 allows you to charge two batteries simultaneously, and it will intelligently and automatically charge the packs at once to their maximum capacity. To top of it, the cells being charged do not even necessarily have the same configuration or be of the same chemical type.
- The juice box comes with the charging algorithm for the most common battery chemistries: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCD, and Pb (lead acid). With the almost de facto standard of XT60 interface, plugging prevents reverse polarity and ensures super-solid connection.
- SkyRC T200 features the so-called AUTO function that sets the feeding current during the process of charging or discharging. Especially for lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two-way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!
- The charger allows users to change the end voltage. (for the expert user only)
- Compact design with the handle ensures the charger is convenient to travel with.
- With the universal-voltage input circuit, you don't need hassle finding a voltage converter between 110V and 220V while traveling around!
- Comply with safety and EMC regulation
Specification:
- Display Type: LCD
- Display Backlight: Blue
- DC Input Voltage: 11-18V
- AC Input Voltage : 100-240V
- Charge Wattage: 100W X 2
- Discharge Wattage: 10W
- Battery Types/Cells:
- LiPo/LiHV/LiFe/LiIon: 1-6cells
- NiMH/NiCd: 1-15cells
- Pb: 2-20V
- Battery Capacity Range:
- NiMH/NiCd:100-50000mAh
- LiPo/LiIon/LiFe/LiHV:100-50000mAh
- Pb: 100-50000mAh
- Charge Voltage:
- NiMH/NiCd: Delta peak detection
- LiPo: 4.18-4.25V/cell
- LiFe: 3.58-3.7V/cell
- Pb: 1.8-2.0V/cell
- LiIon: 4.08-4.2V/cell
- LiHV: 4.25-4.35V/cell
- Discharge Cut-off Voltage:
- NiMH/NiCd:0.1-1.1V/cell
- LiPo:3.0-3.3V/cell
- LiFe:2.6-2.9V/cell
- LiIon: 2.9-3.2V/cell
- LiHV: 3.1-3.4V/cell
- Battery Cutoff Temperature: 20ºC/68ºF-80ºC/176ºF(adjustable)
- Reading Voltage Range: 0.1-26.1V/cell
- Charge Current: 0.1A-12.0A
- Discharge Current: 0.1A-2.0A
- Balance Cells: 2-6 cells
- Balance Current: 500mA/cell
- Safety Timer: 1-120minutes off
- Charge Method: CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
- Memory: 10 different charge/discharge profiles
- Case Material: Plastic
- Case Size: 178 x 135 x 96mm
- Weight: 850g
What is included:
- SkyRC T200 Dual Balance Charger (1 set)
