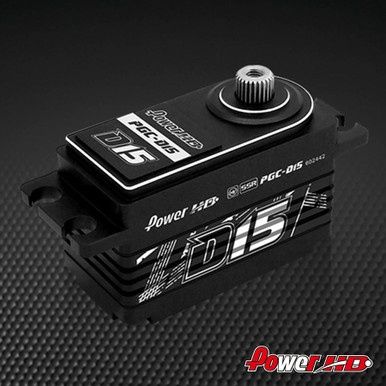

Power HD D15 Low Profile Digital Servo - Black
Sold out
Product Details
Brand: Power HD
Power HD D15 Low Profile Digital Servo - Black
Feature:
- Power HD fresh D15 reverse receiver wire low-profile servo is available, specific for touring cars & drift cars. It features an all-aluminium case and distinctive laser pattern on the bottom, durable titanium and steel gears, a powerful coreless motor and it pulls up to 18.0kg-cm of torque at a speed of 0.085s, weighs only 55g, and support SSR mode.
- With receiver wire leaving the case on the opposite side of the output gear–and thus on the inside of the chassis in most cases – wiring can be carried out much neater compared to standard servos that always have the wire on the “outside” of the chassis. Therefore the servo is the ideal choice especially for 1/10th touring cars and drift cars, as it make for more tidy and safer wiring
- Programmable by using Power HD Multi-function Program Box (sold separately).
Specification:
- Colour: Black
- Bearing Type: Ball Bearing
- Motor Type: Coreless Motor
- Gear Type: Titanium & Steel
- Operating Temperature: -20℃-60℃
- Working frequence: 1520μs / 333hz
- Torque(6.0V): 13.5 kg-cm (187.5 oz/in)
- Torque(7.4V): 16.5 kg-cm (229.1 oz/in)
- Torque(8.4V): 18.0 kg-cm (250.0 oz/in)
- Speed: 0.10 sec (6.0V) | 0.095 sec (7.4V) | 0.085 sec (8.4V)
- Operating Voltage: 6.0 - 8.4 DC Volts
- Weight: 55.0g (1.94 oz)
- Size: 41.0 x 20.0 x 26.3mm (1.61 x 0.79 x 1.04 in)
What is included:
- Power HD D15 Low Profile Digital Servo - Black (1 pc)
